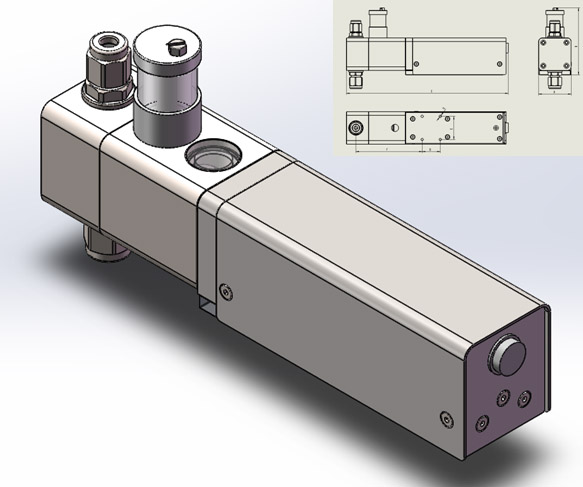

DB-C-Y series electric unidirectional pump

DB-C-Y series electric unidirectional pump FEATURES: 1. DB-C-Y series metering pump adopts precision one-way valve design, suitable for all kinds of non-particle medium and low viscosity liquid quantitative injection; 2. The precision screw drive system is driven by stepping motor, all injection parameters are set by color touch screen, no mechanical adjustment is needed to the pump, the amount of injection can be accurately controlled, and the quantitative injection can be realized under various conditions. Multi-stroke operation can be set to achieve arbitrary large-capacity automatic quantitative injection; 3. The series of metering pumps with high precision and repeated consistency, precision is better than plus or minus five thondths; 4. The contact material is made of 316 stainless steel with excellent corrosion resistance; ...

Details


DB-C-Y系列电动单向泵



特点:



1.  DB-C-Y系列的计量泵采用精密的单向阀设计,适合用于各种不含颗粒的中低粘度液体的定量注液。



2.  采用步进马达驱动精密的丝杆驱动系统,通过彩色触摸屏设置所有注液参数,无需对泵进行任何机械调整,能精准控制注液量,实现在各种条件要求下的定量注液。可设置多行程运行,实现任意大容量的自动定量注液。



3.
该系列的计量泵具有极高的计量精度和重复一致性,精度优于正负千分之五。



4.接触物料金属为316不锈钢,具有相当好的耐腐蚀性。
