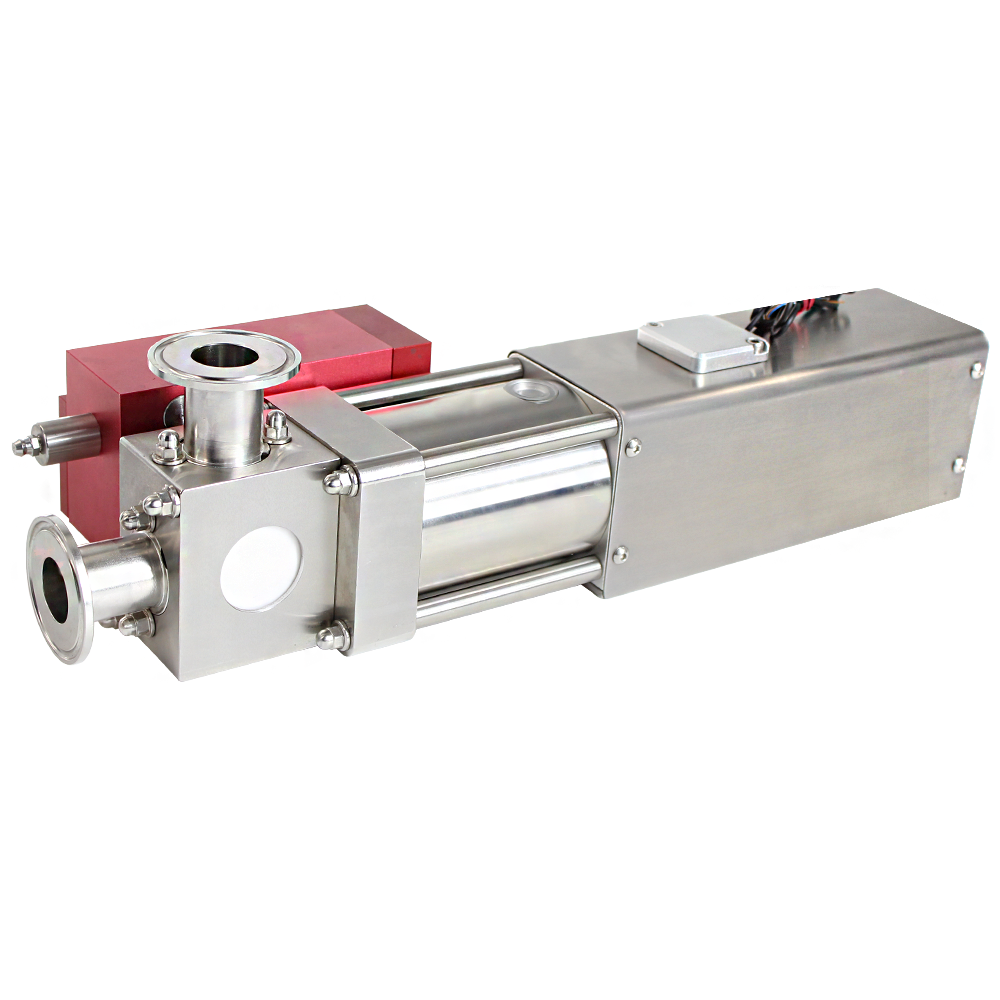

DS-R2 series electric rotary pump

Features: 1. Haiwu DS-R pump adopts a precision ceramic rotary valve to control the input and output of the liquid. The precision-ground ceramic plunger ensures stable and accurate liquid volume measurement.The stepping motor or servo motor drives the precise screw drive system, All injection parameters can be set through the color touch screen without any mechanical adjustment of the pump, achieving accurate control of injection volume. 2. Extremely high metering accuracy and repeat consistency; accuracy is better than plus or minus 0.5%. 3. Suitable for quantitative filling of medium and high viscosity liquids and liquid containing particles, such as sauce and paste.The pump configured with the servo motor is especially suitable forhigh-speed automatic alkali-manganese battery production lines to inject zinc paste. 4. The contact material metal part is made of 316 stainless steel, which has excellent corrosion resistance. ...

Details

DS-R2 series electric rotary pump


Features:

1. Haiwu DS-R pump adopts a precision ceramic rotary valve to control the input and output of the liquid. The precision-ground ceramic plunger ensures stable and accurate liquid volume measurement.The stepping motor or servo motor drives the precise screw drive system, All injection parameters can be set through the color touch screen without any mechanical adjustment of the pump, achieving accurate control of injection volume.

2. Extremely high metering accuracy and repeat consistency; accuracy is better than plus or minus 0.5%.

3. Suitable for quantitative filling of medium and high viscosity liquids and liquid containing particles, such as sauce and paste.The pump configured with the servo motor is especially suitable forhigh-speed automatic alkali-manganese battery production lines to inject zinc paste.

4. The contact material metal part is made of 316 stainless steel, which has excellent corrosion resistance.

型号

Model

柱塞直径

Plunger Dia

行程

Stroke

注液量范围

Dispensing Vol

循环速度

Cycle Rate

DS-R2 -05

16mm

28mm

0-5ML

0-60 times/min

DS-R2 -10

22.5mm

0-10ML

DS-R2 -20

31.8mm

0-20ML

DS-R3-30

34mm

38mm

0-34ML

0-55 times/min

DS-R3-50

41.5mm

0-51ML
