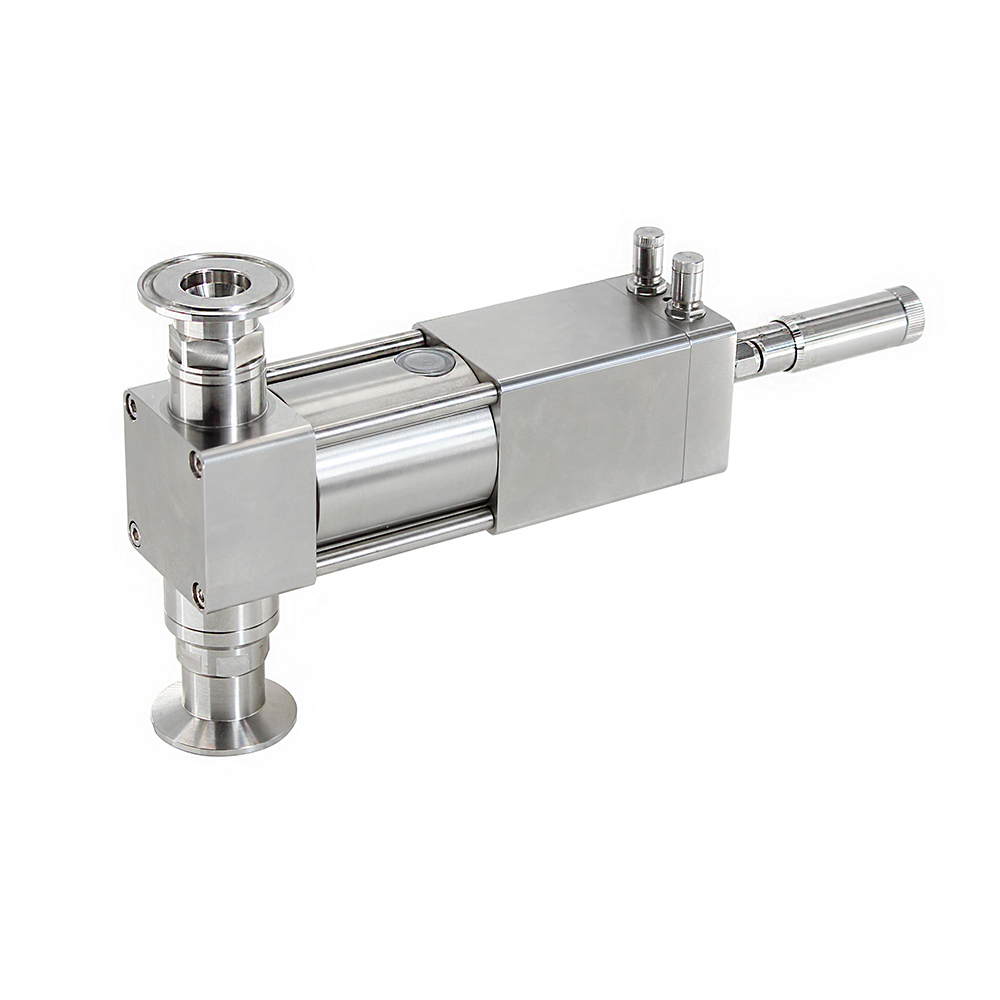

QD-C3 Series Pneumatic Check Valve Pumps
Features:
1. Haiwu QD-C3 series metering pump adopts precise check valve design, which is suitable for quantitative injection of various medium-high viscosity or liquid containing particles.
2. This series of metering pumps has extremely high metering accuracy and repeatability, with accuracy better than plus or minus 0.05%.
3. The contact material metal part is made of 316 stainless steel, which has excellent corrosion resistance.
|
型号 Model |
柱塞直径 Plunger Dia |
行程 Stroke |
注液量范围 Dispensing Vol |
循环速度 Cycle Rate |
|
|
|
|
|
|
|
QD-C2-10 |
16 mm |
25.4mm |
0-5ML |
0-120次/分钟 times/min |
|
QD-C2-10 |
22.5 mm |
|
0-10ML |
|
|
QD-C2-14 |
31.8 mm |
|
0-20ML |
|
|
QD-C3-30 |
32 mm |
40mm |
0-32ML |
0-70次/分钟 times/min |
|
QD-C3-50 |
41.5 mm |
|
0-53ML |
|
|
QD-C4-50 |
54 mm |
25mm |
0-57ML |
0-150次/分钟 times/min |
|
QD-C4-100 |
|
50mm |
0-114ML |
0-120次/分钟 times/min |
|
QD-C4-150 |
|
75mm |
0-171ML |
0-90次/分钟 times/min |
|
QD-C4-200 |
|
100mm |
0-228ML |
0-60次/分钟 times/min |
